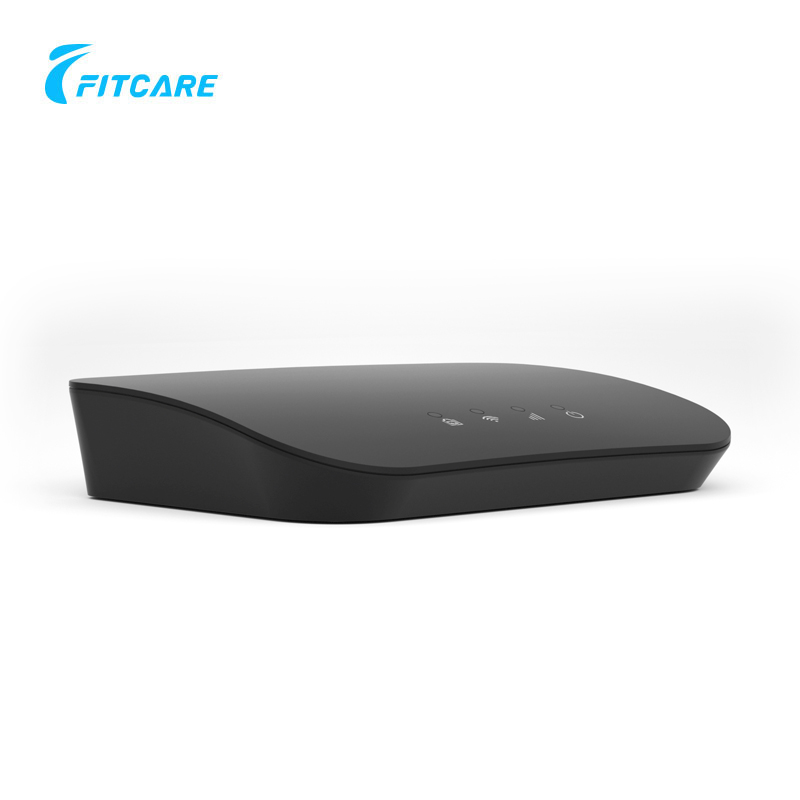

RC905 Training Data Receiver

This device is used to collect data for a wide range of wearable and fitness products, use WiFi, 4G mobile network or network cable to transfer data to the web or application, and support to work with multiple devices at the same time. A wide range of sensors is supported like heart rate monitor, cycling sensor, jump rope, pedometer, punch sensor, etc…

Application Scenario

Convenient for outdoor training via 4G mobile network, or indoor training via Wifi/wired internet connection. Suitable for many different sports scenarios, such as boxing, jump rope, body exercise, etc…

Wide Range of Devices Supported

This device is supported with a wide range of devices by the picture shows.

Working Flow

The device collects broadcast data and uploads to the server via BLE/ANT, it can scan up to 64 standard heart rate ANT+ devices at the same time, the number of other types of equipment is unlimited. As a central device, up to 19 Bluetooth devices can be connected at the same time. Wireless range can reach up to 30 meters.

Connection

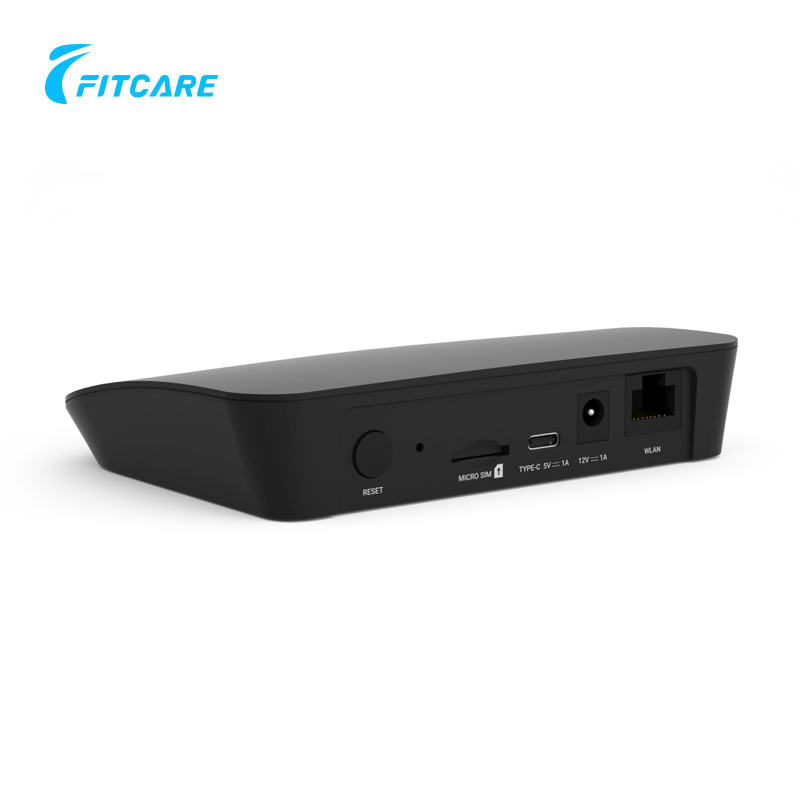

The device has 3 kinds of network connection methods, including wireless WiFi, wired connection and 4G mobile network.

(Notice: 4G function only available in some specified country and area).

Speciafication

Features: ANT+ or BLE data receiving
Supported Devices: Heart rate monitors, cycling sensors, jump ropes, punch sensors Wireless Transmission: ANT+ / BLE / WiFi / 4G
Wired Transmission: RJ45 wired connection
(internet)
Distance: BLE 35m / ANT+ 30m / WiFi 50m
Working Temperature: -10-50°
Product Size: 180*124*24mm
FE-C: Standard FE-C protocol
Development Support: Java SDK
